Item

UT-N62416GSP-M-SFP

Product Name

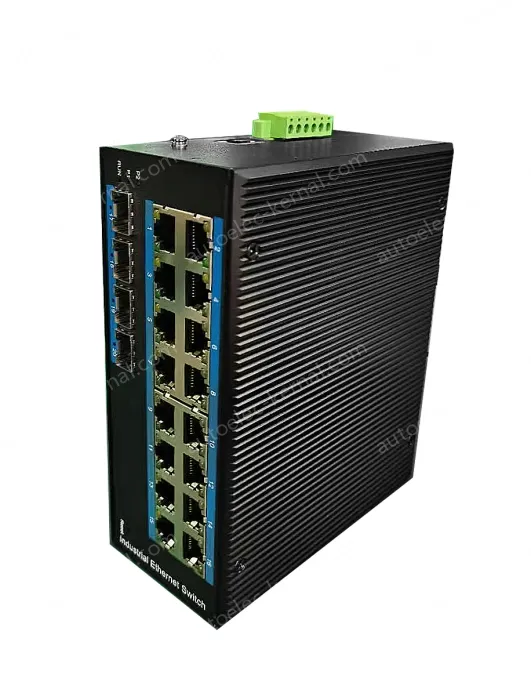

Managed 20-port Industrial Ethernet POE Switch

Hardware Specification

Interface

Interface description

16 RJ45 ports + 4 fiber optic ports

RJ45 port

10/100/1000M auto-detection, full/half duplex MDI/MDI-X adaptive

Fiber optic interface

1000BaseFX port (SFP slot), Auto-100/1000M

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Switching Performance

Forwarding rate

42Mpps

Transmission mode

Store-and-Forward

MAC address

8K

Buffer size

12Mbit

Backplane bandwidth

56G

Switching latency

<10μs

Power Requirement

Input voltage

DC48-57V (dual power supply redundancy backup)

Power consumption

<12W

Access terminal

Phoenix terminal

Support dual power redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 80°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

166*137*68.5mm (W x D x H)

Weight

1180g

Installation method

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab Logical Link Discovery Protocol, IEEE802.1D-Spanning Tree Protocoll, IEEE802.1w-Rapid Spanning Tree Protocoll, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control, IEEE 802.3AF/AT, etc.

POE Standard

POE port: 1-16 ports support PoE

Output Power :

Maximum power 15.4W (IEEE 802.3af)

Maximum power 30W (IEEE 802.3at)

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMC :

IEC(EN)61000-4-2(ESD):±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT):Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-5(Surge):Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-6(RF conduction):3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6
