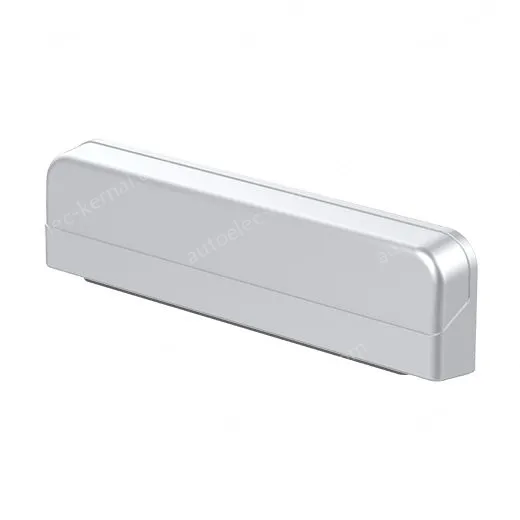

ADS-AE

The ADS-A series automatic door sensors combine reliable sensing performance with sleek and simple design. The door sensors also feature various functions and features including adjustable hold time switch, 4-step detection angle adjustment, and adjustable detection area functions. With a built-in microprocessor, the ADS-A series door sensors provide optimal processing performance for stable performance in various environments.

ADS-AE

Sensing type Diffuse reflective type
Mounting height 2.0 to 2.7m
Light source Infrared LED(850nm modulated)
Power supply 12-24VAC~ ±10% 50/60Hz
12-24VDC
Power consumption Max. 2VA(at 24VAC~)
Control output Relay(SPST(1a))
Front sensing area 7.5°, 14.5°, 21.5°, 28.5°(4-step setting)
Left/Right sensing area Eliminating each (1, 2, 3 -area), (7, 8, 9 -area)
Environment_Ambient illumination Sunlight/Incandescent lamp: Max. 3,000lx(receiver illumination)
Environment_Ambient temperature -20℃ to 50℃, storage: -20 to 70℃
Protection structure IP50
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Cover color Silver
Output holding time Time delay approx. 0.5sec
Holding time of stationary sensing Selectable 2sec, 7sec, 15sec(selectable by holding time setting switch)
Interference prevention H, L(selectable by interference prevention switch)
Connection type Connector wire connection
Accessories Cable: 2.5m, Mounting screw: 2, Mounting template
Material Case: Acrylonitrile butadiene styrene, Lens: Acryl, Lens cover: Acryl
Weight Approx. 320g

★ ★ ★ ★ ★
