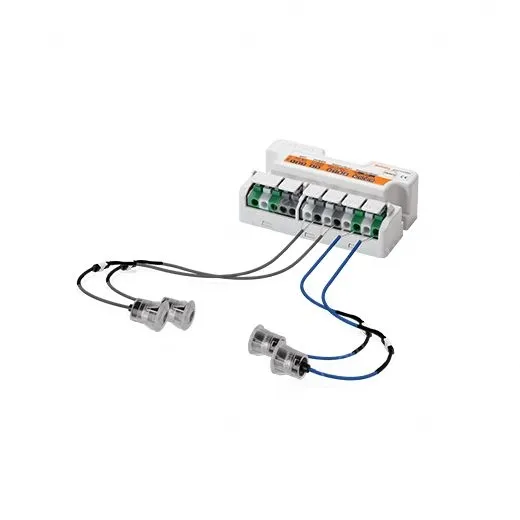

ADS-SE2

The ADS-SE1/2 series automatic door side sensors are through-beam type sensor system with a dedicated controller. The sensors feature long sensing distances up to 10 m and provides stable detection even in high ambient lighting, up to 100,000 lux. Connection between sensor and controller is made easy with push-to-connect wiring and one-touch automatic sensitivity adjustment function is included for convenient set up.

ADS-SE2

Sensing type Through-beam type
Sensing distance 0 to 10m
Light source Infrared LED(850nm modulated)
Power supply 12-24VAC~ ±10% 50/60Hz
12-24VDC
Current consumption and Power consumption Current Consumption: Max. 2VA, Power Consumption: Max. 50mA
Control output Relay(SPST(1a))
Sensing Channel 2-channel
Sensitivity adjustment Set by button
Sensor cable length 5m
Environment_Ambient illumination Sunlight: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature -20 to 55℃, storage: -25 to 60℃
Protection structure IP30
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Response time Approx. 50ms(from light OFF)
Output holding time Approx. 500ms(from light ON)
Available sensor set 2-channel
Sensor cable Ø2.4mm, 1-wire, 5m(AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm)
Material Sensor - Holder: Acrylonitrile butadiene styrene, Lens: Polymethyl methacrylate, Lens guide: Polycarbonate, Nut: Polycarbonate
Controller - Housing: Acrylonitrile butadiene styrene, Cover: Acrylonitrile butadiene styrene, Bolt: Steel chromium molybden
Accessories Sensor 1set(ADS-SHP), Fixing bolt(M4×20) for controller: 2
Weight Approx. 450g(approx. 300g)

★ ★ ★ ★ ★
