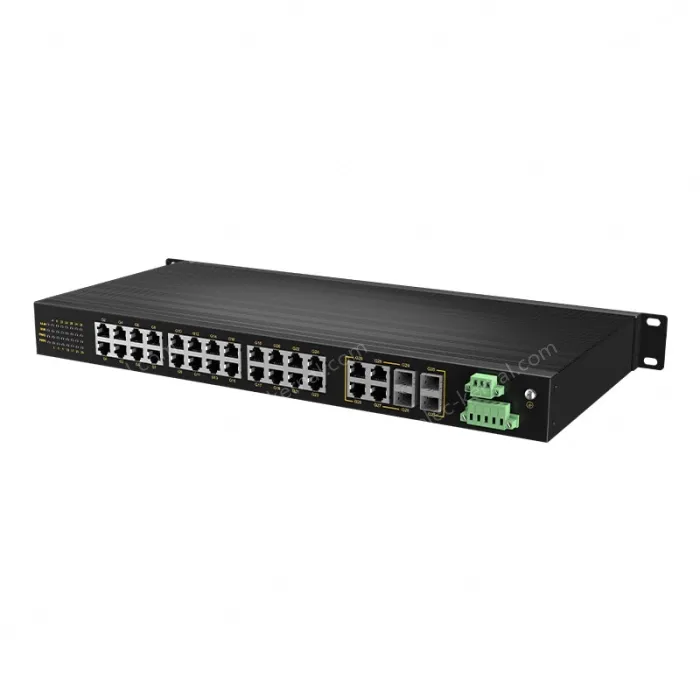

Star management industrial switch product series is rich, port configuration is flexible, products are made of high-performance industrial switching chip, with strong anti-interference performance; Industrial wide temperature design, to meet the stable and reliable operation in industrial environment; Support power redundancy backup, using private ring network redundancy, fault self-healing time is very short <20ms, effectively prevent communication interruption.
1. Support 4 Gigabit Combo ports + 24 Gigabit electrical ports for optional configuration
2. Support private Ring network technology, support ERPS, MSTP/RSTP, compatible with STP
3. Support Console, WEB, LLDP, SNTPv4, SNMPv1/v2c, ACL and other management methods, and support unified host computer software management
4. IP40 protection, EMC4 protection, 6000V lightning protection
5. The front and rear can be wired, and the front and rear panels have dual indicators
6. Support AC85-264V/DC110-370V power supply, optional dual power supply
| Product model | ES6028G-4GC-24GT |
| Gigabit electrical port | 24 x 10/100/1000Base-T(X)RJ45 ports with MDI/MDI-X connectivity |
| Gigabit Cmobo port | The four Gigabit multiplexing ports can be used as four 1000Base-X (SFP slot) optical ports and four 10/100/1000Base-T(X) RJ45 electrical ports |
| Optical port parameters | Wavelength: 1310nm/ 1550nm (singlemode), 850nm/1310nm (multimode) Optical port type: shielded SFP base, LC optical interface Transmission distance: 10 to 80 km optional (single mode), 550 m (multi-mode) Transmission rate: 1.25Gbps |
Electricity | AC: AC85-264V/DC110-370V (dual power supply optional) |
| Consumption | 24W(max) |
| Network standards | IEEE802.3, 802.3u, 802.3z, 802.3x, 802.1P, 802.1Q, etc |
| Swap function | It supports VLANs and GVRPs, port rate limiting, storm suppression, port aggregation, and flow control |
| Redundancy technology | Support private ring network technology, support ERPS, MSTP/RSTP, compatible with STP |
| Multicast technology | IGMP v1/v2, IGMP Snooping, GMRP, and static multicast are supported |
| Management & Maintenance | Support Console, WEB management mode, LLDP, SNTPv4 Support SNMPv1/v2c, ACL, support unified host computer software management |
| Mode of exchange | Store-and-forward |
| Backplane bandwidth | 56Gbps |
| Cache size | 4.1Mbit |
| Mac address table | 8K |
Size | 482.6mm×44mm×210mm(W×H×D) (including mounting ears) |
| Operating temperature | -40°C～+75°C |
| EMC | IEC61000-4-2 (ESD), Level 4 IEC61000-4-5 (Surge), Level 4 *The network port supports 6KV lightning protection, IEC61000-4-4 (EFT), and Level 4 |
