Item | UT-N60N08GP |

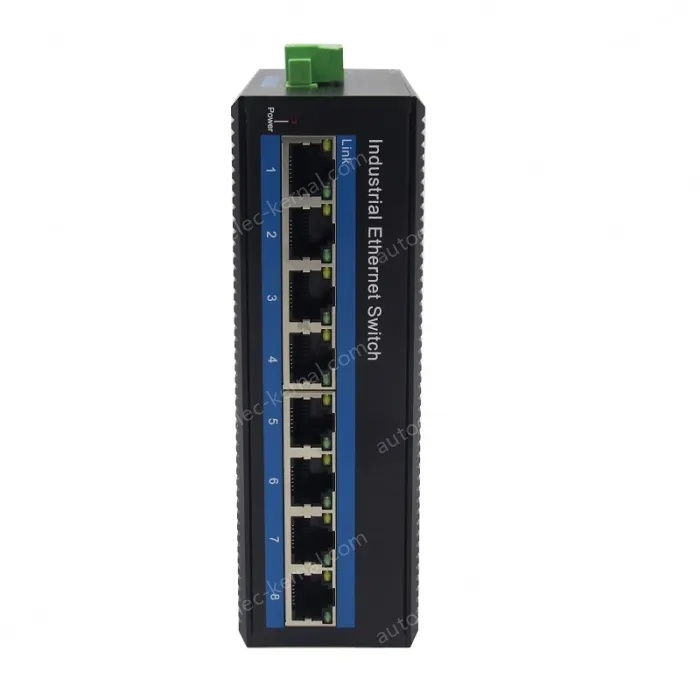

Product Name | Gigabit 8-port Industrial Ethernet POE Switch |
Hardware Specification | |
Interface | |
RJ45 port | 8*RJ45, 100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X |
PIN | V+ ,V+, V-,V- correspond to pin 1,2,3,6 (default) |
LED Indicator Light | |
LED indicator light | Power indicator: PWR Interface Indicator : Electric Port (Link) |
Switching Performance | |
Forwarding rate | 15Mpps |
Transmission mode | Store-and-Forward |
MAC address | 8K |
Buffer size | 2Mbit |
Backplane bandwidth | 20G |
Switching latency | <10μs |
Power Requirement | |
Input voltage | DC48 ~ 57V Dual power redundancy backup |
Access terminal | Phoenix terminal |
Power consumption | <5W |
| Support dual power redundancy |
| Support built-in overcurrent 4.0A protection |
| Support reverse connection protection |
Operating Environment | |
Operating temperature | -40 ~ 80°C |
Operating humidity | 5 ~ 95% |
Storage temperature | -40 ~ 85°C |
Storage humidity | 5 ~ 95% (no condensing) |
Mechanical Characteristic | |
Housing | IP40 protection level, metal housing |
Dimension | 143.7 x103 x 44.2mm (W x D x H) |
Weight | 640g |
Installation method | DIN rail/ wall-mounted |
Ethernet Standard | |
Standard | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af; IEEE802.3at; |
POE Standard | Standard PoE : IEEE802.3af/ IEEE802.3at PoE port : 1-8 ports support PoE Output Power : Maximum power 15.4W (IEEE 802.3af) Maximum power 30W (IEEE 802.3at) POE port auto recognition af/at |
Industry Standard | EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Power line: ±2kV ; Data line: ±1kV IEC(EN)61000-4-5(Surge) : Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-6(RF conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock : IEC 60068-2-27 Freefall : IEC 60068-2-32 Vibration : IEC 60068-2-6 |
